How do I use HDMI ARC with receiver?
Emma Martin How do I use HDMI ARC with receiver?
How to use the Audio Return Channel (ARC) feature
- On the receiver remote control, press the Menu or Home button. The menu should appear on the TV screen. If not, check your connections.
- Select Settings.
- Press Enter.
- Select HDMI Control or CTR. HDMI.
- Press Enter.
- Select ON or CTRL ON.
- Press Enter.
What kind of HDMI does the Yamaha htr-6050 use?
1080p-compatible HDMI With support for two HDMI inputs and one HDMI output (1080p compatible), the Yamaha HTR-6050 provides the most advanced method of delivering high quality video signals to a home theater system to enable the reproduction of DVD and satellite TV sources with HD quality.
Can you use HDMI arc on a Yamaha receiver?
HDMI-ARC can only pass two-channel PCM stereo, Dolby Digital 5.1, and maybe DTS 5.1 to your receiver – depending on the model number of the TV – Whereas your Yamaha Receiver can also decode Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio and also has 4K pass-through if needed. HDMI-ARC can’t pass 7.1 channel signals.
What kind of HDMI cable do I need for arc?
Now go into your TV’s settings and select “Receiver” as the audio output. Any cable (Standard or High Speed) will work in conjunction with HDMI ARC and there’s no such thing as an HDMI version v1.4 cable. No TV or HDMI equipped AV receiver is automatically ready to to use ARC when you get them.
Can a Panny ST60 work with an arc?
ARC is perfectly working with Panny ST60 and Yamaha receivers. Make sure HDMI cable is connected to HDMI2 in TV then ARC and HDMI control is activated within receiver. Then go to APPS in Panasonic TV, select VIERA Link and switch to Speaker Output: Home theater.
1080p-compatible HDMI With support for two HDMI inputs and one HDMI output (1080p compatible), the Yamaha HTR-6050 provides the most advanced method of delivering high quality video signals to a home theater system to enable the reproduction of DVD and satellite TV sources with HD quality.
What can a HDMI ARC port do for a TV?

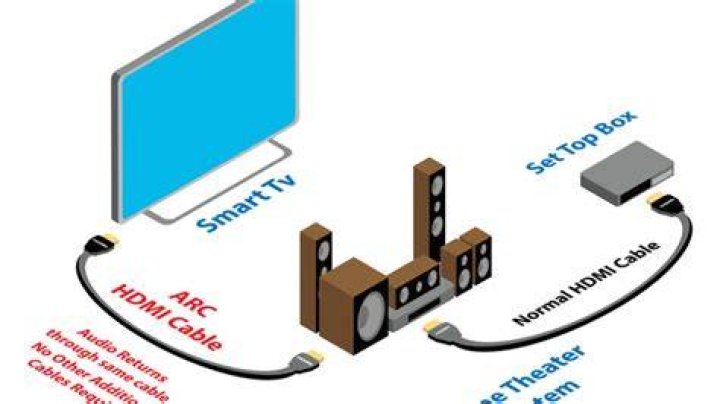

It uses a single HDMI connection to send audio from a TV to a receiver or soundbar. Thanks to this protocol, a single HDMI connection can provide two-way communication between the two compatible devices. In other words, the HDMI ARC port allows you to use HDMI as both an input and an audio output.
Where do I find the ARC port on my TV?
If your television offers HDMI-ARC compatibility, you’ll find one or more ports somewhere on the back or side of your television. Using a flashlight, look for the words HDMI and ARC near one or more of the ports. That’s the one that is compatible with HDMI ARC. You can also check your TV’s instruction manual to see whether it supports HDMI-ARC.
When did the HDMI ARC standard come out?
It was first introduced in 2009 and has become a common standard on nearly all TVs, soundbars, and receivers. Any device that supports the HDMI 1.4 standard should support ARC. Note that using HDMI-ARC doesn’t require a new HDMI cable.
