How do you hook up a old VCR to a flat screen TV?

To connect a VCR to most flat screen TVs, you will need a cable with these yellow, red and white connectors. For non-European VCRs, you will need a cable with these plugs at each end. For European VCRs, you may need a SCART plug at one end, and these yellow, red and white plugs at the other end to connect to the TV.

How do you hook up an old VCR to a new HDMI TV?

Connect a VCR with HDMI only on the TV You need a converter box between the VCR and the TV. The yellow, red and white lead from the VCR plugs into the input of the converter box. The output of the converter box connects to a HDMI lead. The other end of this lead will plug into one of the HDMI inputs of the TV.

How does a VCR connect to a TV?

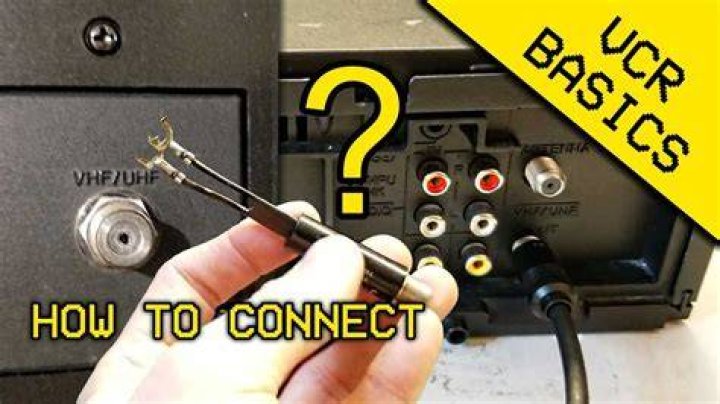

This photo shows the standard connectors on most (stereo) VCRs. If you look closely, on the right hand side are the “line out” sockets (the left hand side is for “line in”, which we don’t use for connecting to a TV). The top right red socket is for the right audio out. The white middle right connector is the left audio out socket.

What kind of plug do I need for my VCR?

These plugs are often called RCA or Phono plugs. The yellow cable is used for the video signal, the red cable for the right audio, and the white cable for the left audio signal. Many VCRs come with these leads supplied. If you don’t have any, they should be available at most electronic or electrical stores. The rear of the VCR

What kind of audio does a VCR have?

Many VCRs are not stereo, they are only mono. That is, they do not output a left and right audio channel. Instead they only output one single audio channel (mono audio). Therefore, they do not have a red and white audio output (for right and left audio). They only have a white output, for the mono audio.

This photo shows the standard connectors on most (stereo) VCRs. If you look closely, on the right hand side are the “line out” sockets (the left hand side is for “line in”, which we don’t use for connecting to a TV). The top right red socket is for the right audio out. The white middle right connector is the left audio out socket.

Many VCRs are not stereo, they are only mono. That is, they do not output a left and right audio channel. Instead they only output one single audio channel (mono audio). Therefore, they do not have a red and white audio output (for right and left audio). They only have a white output, for the mono audio.
