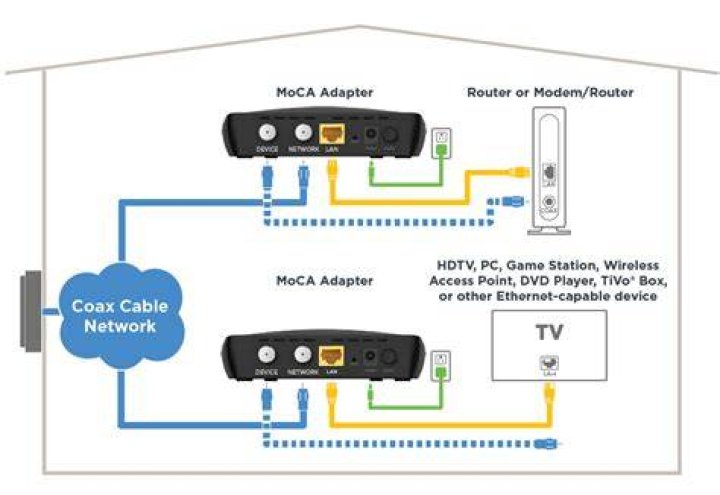

How is a coax adapter connected to a router?

The coax adapter is then connected by an Ethernet cable to the respective connected devices. This installation started in the home office. The existing equipment was the modem, SonicWall security device, router (4 port), switch (5 port), and power strip.

What do I need to set up a coax network?

At the core of the installation is the coax network (MoCA) adapter, which I purchased from Legrand through Amazon. I needed three adapters for my installation because I was installing in three rooms. The adapters come with a coax cable (~6.5ft), a twisted pair Ethernet cable (~3ft) and a power supply.

What’s the name of the coax cable network?

Fortunately, there’s a wired networking solution that allows high speed Ethernet to bridge over the existing coax cable (cable TV) network in the home. It’s called MoCA. Before I get into the installation, the next step will cover a quick overview of the coax networking technology. Step 1: What Is Coax Networking (MoCA)?

Where does the coax adapter go in a STB?

One outbound port will go to the cable set top box (STB) while the other port will go to the coax adapter. The coax adapter is then connected by an Ethernet cable to the respective connected devices. This installation started in the home office.

How do I plug in my coax cable?

Make sure coax cable from the wall is connected to your cable box at “cable in” Be sure that the cable box isn’t plugged into a power outlet controlled by a light switch Verify that the cable box is powered on. (press cable button, then power button) Plug in the cable box using the power cord. Plug in the cable box using the power cord.

Where is the coax cable from the antenna to the preamplifier?

The coax cable length from the antenna to the preamplifier should be kept as short as possible for the best results. On the right is the coax cable leading indoors to the power supply/injector ANT. connection.

What does coax networking mean for Direct TV?

This is actually just called Coax Networking. The idea is that all your receivers communicate with each other through the satellite cables. This creates a smooth, clean path for sharing HD video and makes it easier for DIRECTV techs to set up without disturbing the rest of your network.

How long does it take to connect from cable out to cable in?

Connect from “Cable Out” on the cable box, to “Cable In” on your TV. For best connection use Or use To find your guide: Up to15 minutes for your TV guide to load. Most cable boxes will display the correct time when ready.
