What color wires connect together?

US, AC:The US National Electrical Code only mandates white (or grey) for the neutral power conductor and bare copper, green, or green with yellow stripe for the protective ground. In principle any other colors except these may be used for the power conductors.

Can you connect red and black wires together?

Red Electrical Wires These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire.

Which color wire is positive?

red
Wire Colors for DC Power The coloring is as follows: Positive – The wire for the positive current is red. Negative – The wire for the negative current is black. Ground – The ground wire (if present) will be white or grey.

Is the yellow or white wire positive?

Yellow is positive, blue is negative.

Are there different color codes for electrical wiring?

In Europe and other countries, there are different standards in place. In most cases, a machine made overseas for use in America will be wired according to US color standards. Taking the time to confirm this is the case before using the machinery is always a smart safety step.

What do the color markings on electrical cables mean?

Electrical Cable and Wire Color Markings. Non-metallic (or NM) 120 V and 240 V electrical cable comes in two main parts: the outer plastic sheathing (or jacket) and the inner, color-coded wires. The sheathing binds the inner wires together, and its outer markings indicate the number of wires and size of wire (gauge) within the sheathing.

What’s the difference between white and yellow wiring?

For example, white sheathing means that the inner wires are 14-gauge and yellow sheathing indicates that they are 12-gauge. But looking deeper, the color of the wires inside of the sheathing reveals that different colored wires serve different purposes.

What kind of electrical wire is orange in color?

While rare, they can be identified by looking for a wire that is marked with orange, which will be the higher voltage wire. 277/480 Volt Wire Color Standards These high-voltage connections are quite common in many manufacturing and other industrial areas.

Do you know the wiring color codes in Europe?

The wiring color codes in Europe are not the same as those in North America. Thus, before trying to install a ceiling fan, make sure to use the correct wiring diagram for your specific fan in your region. Here we will describe the wire colors as according to the wiring color codes for the USA and Canada.

Why are electrical wires and screws color coded?

Electrical wires and screw terminals are color-coded to help you match each wire to the correct terminal. But this doesn’t mean that color-coding is always a reliable guide.

Electrical Cable and Wire Color Markings. Non-metallic (or NM) 120 V and 240 V electrical cable comes in two main parts: the outer plastic sheathing (or jacket) and the inner, color-coded wires. The sheathing binds the inner wires together, and its outer markings indicate the number of wires and size of wire (gauge) within the sheathing.

What are the color standards for electrical wiring?

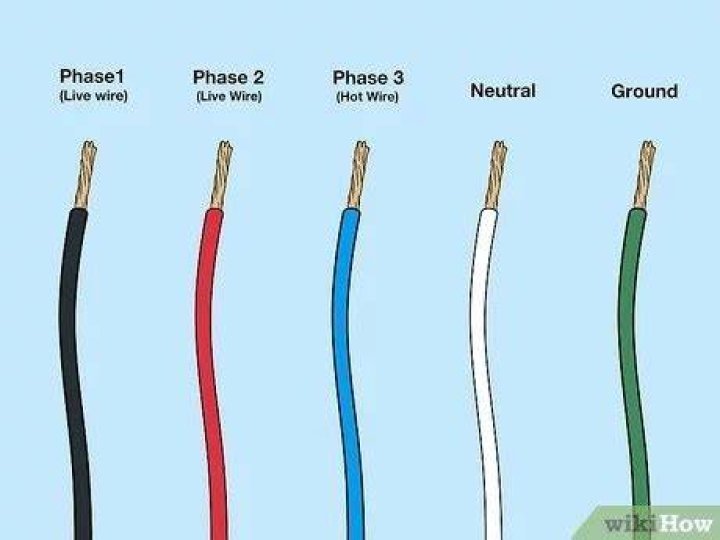

For wires that will be 120, 208 or 240 volts, the following wiring color standards are used. It is important to note that with this type of wiring, there are multiple phases in place, each of which will get its own color wire to make it clear what it is for those working on it.
