What is cat3 cable used for?

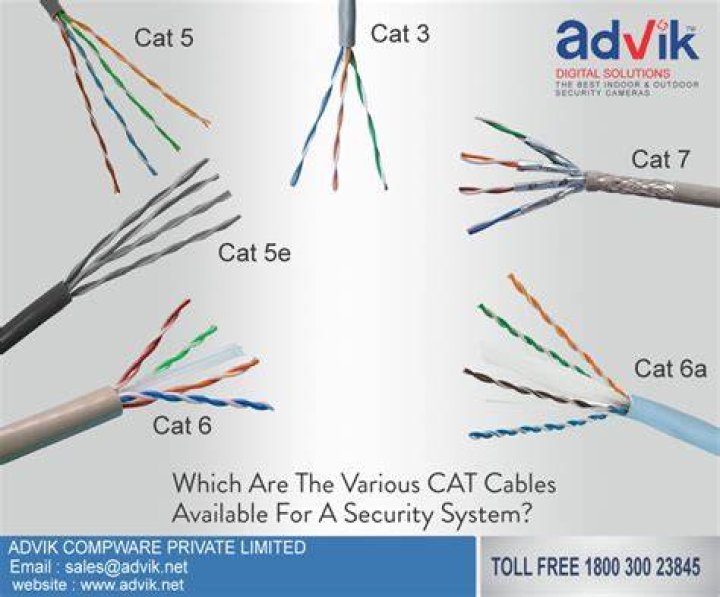

A Category 3 cable (Cat 3 cable) is a type of unshielded twisted pair (UTP) cable that is used for voice and data communications in computer and telecommunication networks. It is an Ethernet copper cable defined by the Electronics Industry Alliance (EIA) and Telecommunication Industry Association (TIA).

Which cable type is ideal for connecting between two buildings?

The best way to connect your two buildings is with fiber-optic cable and a transceiver at each end. If that brings costs over budget, a good second choice is Category 5 cable with a Category 5 protector at each end.

Can I use straight through cable to connect two switches?

When hooking two new switches, or an old switch to a new switch, you can use either a straight or crossover cable and it will probably auto detect how to configure the port. If not, press the up-link button and connect the cable to the highest numbered port on that switch.

Is CAT3 cable still used?

Uses. Cat-3 cable is still used in PBX phone systems and Voice Over Internet Protocol (VoIP) installations, along with the slower 10Base-T Ethernet installations. Cat-5 cable is widely used for 10/100Base-T Internet and analog voice installations.

Is CAT3 a coaxial cable type?

Short for Category 3, Cat3 Cable is an unshielded twisted pair (UTP) cable designed to reliably carry data up to 10 Mbit/s, with a possible bandwidth of 16 MHz. Note that unlike Cat 1, 2, 4, and 5 cables, Cat 3 is still recognized by TIA/EIA-568-B as its defining standard.

Which cable has highest bandwidth?

Coaxial Internet Cables: Coaxial cables are high-frequency transmission cables made up of a single solid copper core that transfers data electrically over the inner conductor. Coax has 80X more transmission capacity than twisted-pair cables.

Which cable is used to connect router to switch?

Straight-through cable is used for unlike devices: router to switch/hub, computer to Switch/hub. Cross-over cable is used for like devices: Switch to Switch, Router to Router, Computer to Computer Rolled cable is used for Configuring Router or Switches.

How much power can a USB Type C cable hold?

USB Type-C cable supports up to 130W* of power transmission along the same cable for compatible devices compared to 2.5W on its predecessors USB 2.0 or USB 3.0. This helps power devices like cellphones, tablets and also charge compatible laptops or ultra-books.

What kind of plugs are needed for USB 3.2?

USB 3.2 USB 3.2 was introduced in 2017 and the speed could be doubled to up to 20 Gbit / s. USB type C plugs are required, which then transmit 10 Gbit / s in each direction in the multi-lane method over two pairs of wires. Therefore, each cable have two USB-C plugs, as type A plugs are not compatible with the USB 3.2 transmission standard.

Which is the correct way to plug in a USB cable?

When charging, you will connect the USB-A side into the USB-plug or into a laptop or computer. USB-A cables will only go into the port one way. You can usually tell which way up they should be by the USB symbol printed on the top. Make sure that the cable is inserted the correct way so as not to damage the cable or device.

What kind of USB cable do I need for Thunderbolt?

If your drive is not Thunderbolt and has a USB-C female connector, then use a USB-C male to USB-A male cable. Do not use USB-C female to USB-A male adapters because they do not comply with the USB Type-C specification.

What kind of cable do I need to connect three computers?

CONNECTING THREE OR MORE COMPUTERS. In order to physically connect three or more computers, you should use crossover Ethernet cable. You must be able to plug the Ethernet cables into a device that will allow signals to be transmitted to one another. There are several devices that will allow you to do this: a hub, a switch, or a router.

USB 3.2 USB 3.2 was introduced in 2017 and the speed could be doubled to up to 20 Gbit / s. USB type C plugs are required, which then transmit 10 Gbit / s in each direction in the multi-lane method over two pairs of wires. Therefore, each cable have two USB-C plugs, as type A plugs are not compatible with the USB 3.2 transmission standard.

Can a USB-C cable be plugged on both ends?

USB-C connectors are truly reversible, meaning you can plug it in either orientation. And while there are cables that are USB-C on one end and another connector on the other, in the future we can expect USB-C to USB-C cables to become more common as adoption increases. What are the benefits of USB-C?

Can a USB cable connect to an Ethernet cable?

There are adapters that will allow an Ethernet cable to connect directly to a USB port, though this type of setup would be a temporary solution for networking. Fiber optic connectors require different types of connectors from those used with coax or twisted-pair cables, such as CAT5e.
