How do I hook up equalizer to receiver?

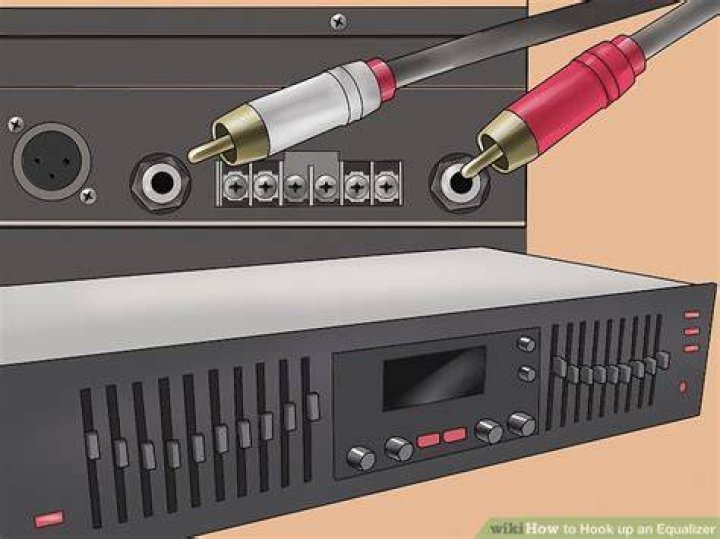

Connect one pair of RCA cables between the receiver and equalizer. Connect one pair of cables to the pre-amp output channels on the receiver and the other end of the cable to the left and right channel inputs on the equalizer. You will usually find these channels on the rear of the equalizer.

How do you wire an equalizer?

To do so, connect a set of RCA cables to the head unit’s preamp outputs. Tape the RCA cables together to prevent them from separating. Run the RCA cables through the dash to the equalizer and connect them to the EQ inputs. Use additional RCA cables to connect the EQ to the amplifier (one set of RCA cables per amp).

Can you use an equalizer on a multi-channel receiver?

Unfortunately, you cannot use an equalizer with that, and most other, modern multi-channel receivers. They do not allow a way to intercept the audio signal, send it to an external processing device, and reinsert it right back into the signal chain.

Do you need an equalizer for a Bose 901?

No, the 901’s require their intended equalizer to sound right. That’s about all there is to it. Sorry i didn’t have all the info earlier, the receiver or amp i have is a Yamaha natural sound AV Receiver HTR-5560.

Can you hook up an EQ to an AVR?

They are trustworthy. There are 2 ways to hook them up. 1st, if you have jumpers on your Avr between preamp and power amp section. (2) front main out to Eq to amp to speakers, providing you have pre-outs. Unfortunately, you cannot use an equalizer with that, and most other, modern multi-channel receivers.

Do you need an external power amplifier for a Bose equilizer?

But, not all hope is lost. Your only option is to take your signal from the main outputs on the back of your unit, feed it to the equalizers input and then take the equalizers output and feed it to an external power amplifier. Yes, you will need an external power amp to do this.

How do you connect an equalizer to a receiver?

The length of the RCA cables should match the length of the distance between the receiver and the equalizer. Connect one pair of RCA cables between the receiver and equalizer. Connect one pair of cables to the pre-amp output channels on the receiver and the other end of the cable to the left and right channel inputs on the equalizer.

Where is the yellow wire on an equalizer?

The yellow wire (could be red or another color- check your manual) on your equalizer is the 12V power cable. Connect this cable either to the power cable attached to the receiver or to a 12V variable power source in the fuse box (such as the wiper fuse).

What kind of power cable do you need for an equalizer?

Connect the power cable. The yellow wire (could be red or another color- check your manual) on your equalizer is the 12V power cable. Connect this cable either to the power cable attached to the receiver or to a 12V variable power source in the fuse box (such as the wiper fuse).

They are trustworthy. There are 2 ways to hook them up. 1st, if you have jumpers on your Avr between preamp and power amp section. (2) front main out to Eq to amp to speakers, providing you have pre-outs. Unfortunately, you cannot use an equalizer with that, and most other, modern multi-channel receivers.
